The new Beamstopper intensity and position monitors

These compact detector are now available!

Both as compact (<0.8mm diam.) intensity monitor or as 4 diodes (2 and 3mm   diam.) for phase-contrast measurements.

Associated, EPICS compatible, readout systems are also available

CONTACT US FOR MORE DETAILS:   This email address is being protected from spambots. You need JavaScript enabled to view it.

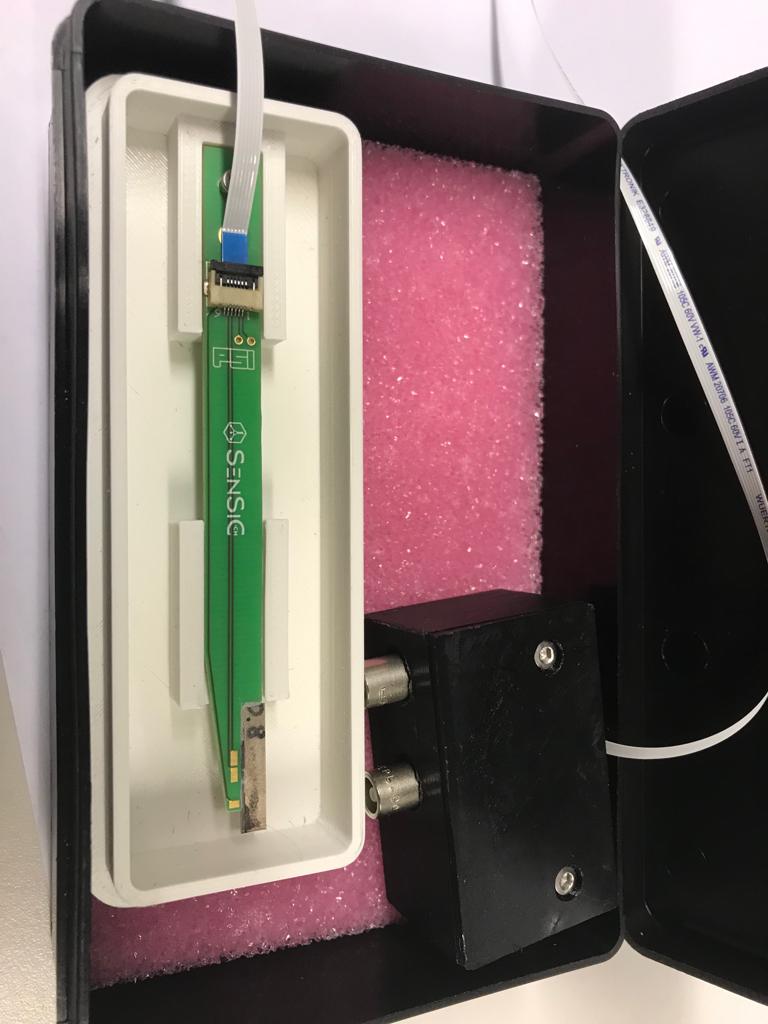

Fig.1 0.8mm diameter diode with engineered connections.   Silver is used for fully blocking the beam

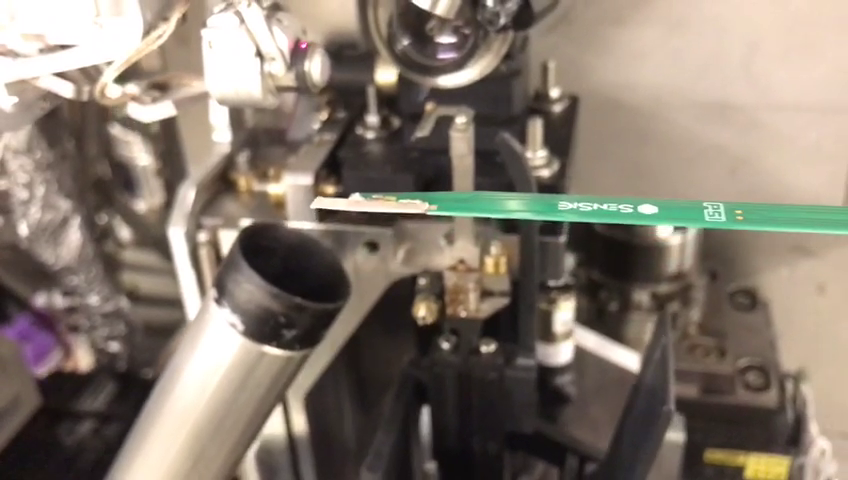

Fig.2 Installation of the sensor at PXI beamline (SLS/PSI)

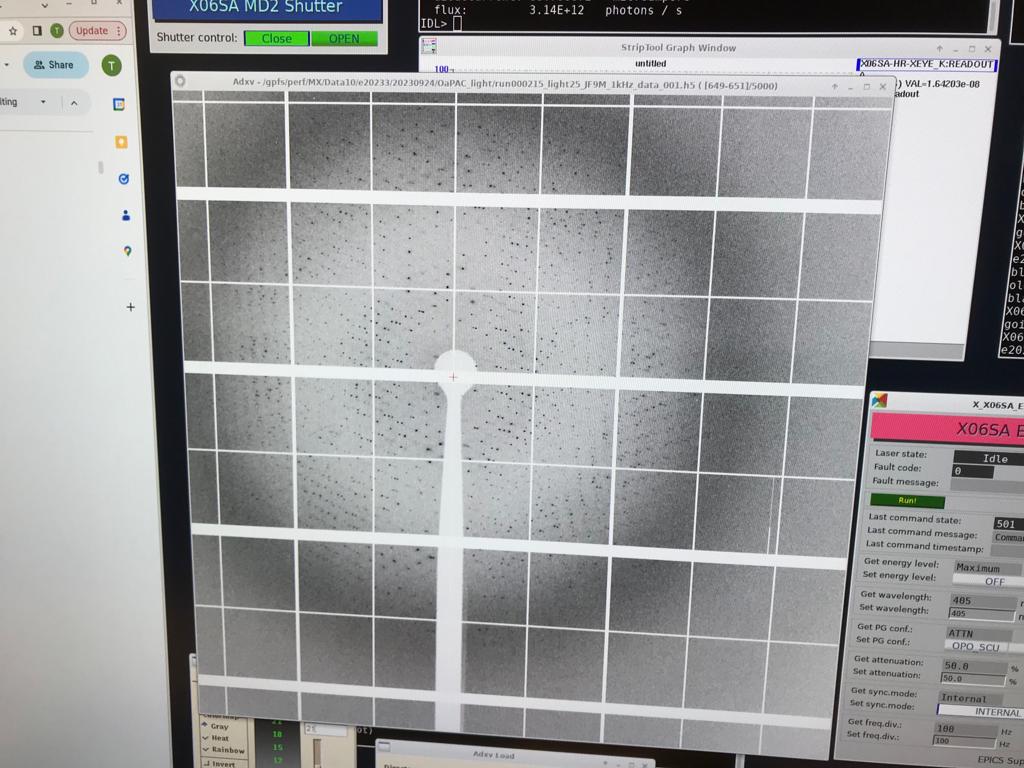

Fig.3 View of the shadow generated by the beamstopper   (PXI/SLS/PSI)

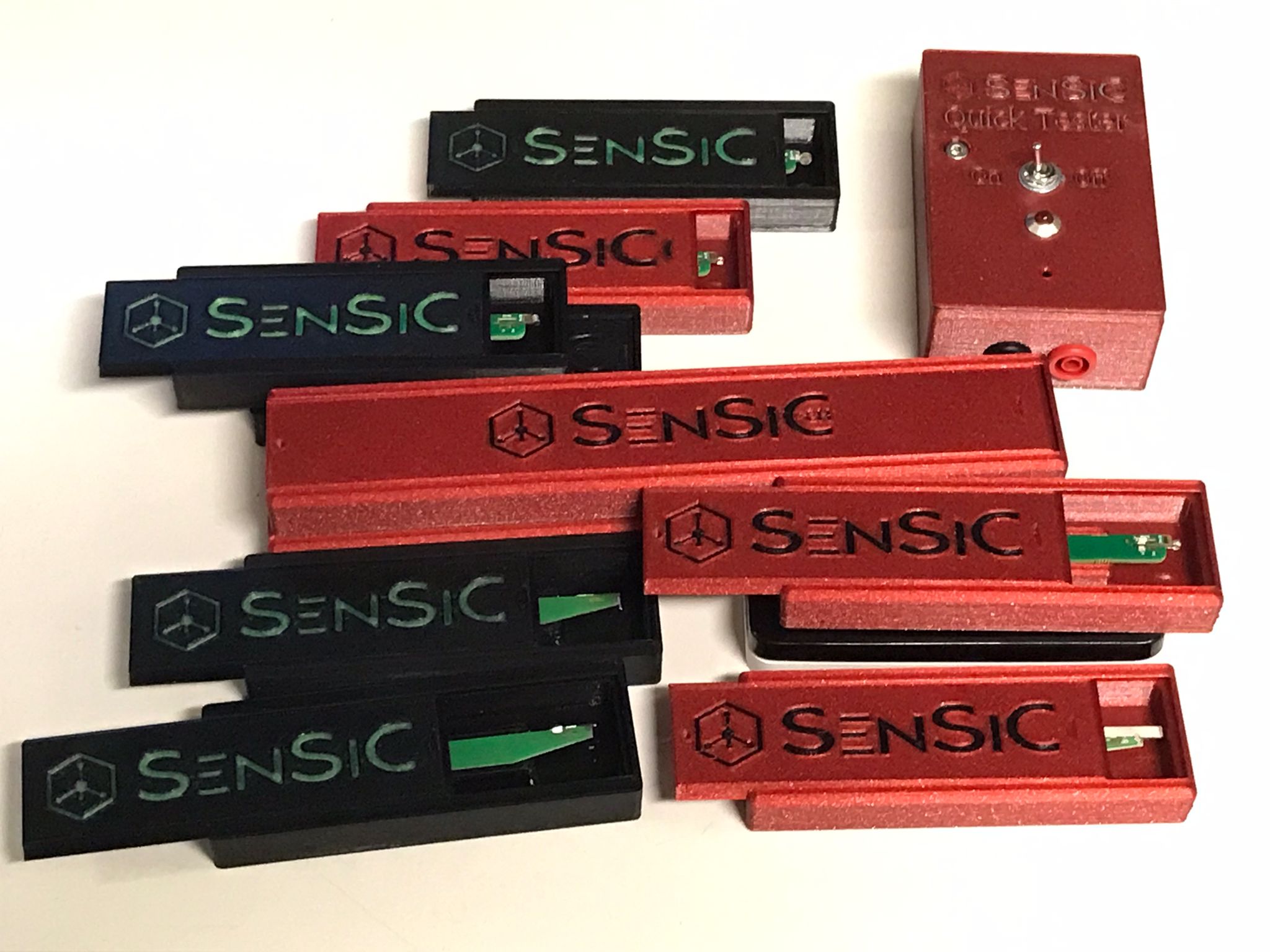

Fig.4 Overview of the fabricated sensors

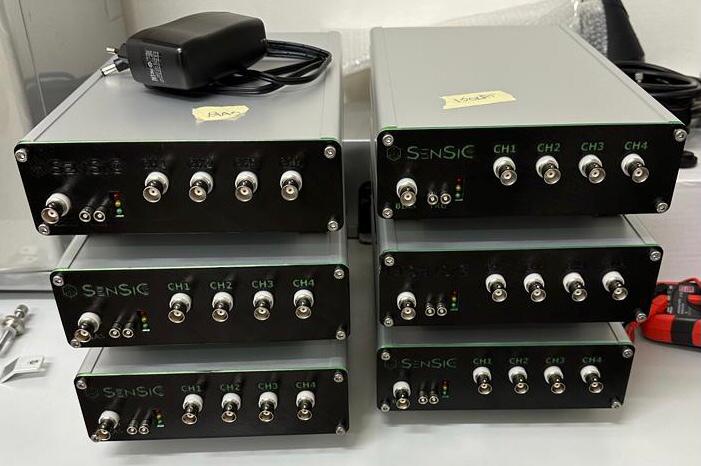

Fig.5 Overview of the readout systems
